UMOYA – Automatic Tinting Dispenser
UMOYA – Automatic Dispenser is smartly designed, compact, reliable & user friendly. The Umoya dispensers are available with several combination of pumps suitable for different applications. The Umoya is built using the best of materials to enhance performance and longevity.
Additional information
DISPENSING TYPE |
Simultaneous Dispensing |
---|---|
DISPENSING MODE |
Volumetric |
MINIMUM DISPENSING |
1/384 fl. oz. (0.077ml) using 4 mm nozzles |
DISPENSING SPEED |
200ml /min |
NUMBER OF CANISTERS |
Up to 16 |
CANISTER CAPACITY |
2 Ltr |
COLORANT STIRRING |
Automatic and programmable |
CAN SENSOR |
Standard |
CAN HANDLING |
Manually adjustable can shelf |
HUMIDIFIER CAP |
Automatic |
LASER TARGET LIGHT |
Optional |
COMPATIBILITY |
Universal / Low VOC / Zero VOC / Solvent |
POWER SUPPLY |
220V / 50 Hz & 110V / 60 Hz |
MACHINE NET WEIGHT |
143 kg |
MAXIMUM MACHINE SIZE |
W 790 x D 805 x H 1250 mm |

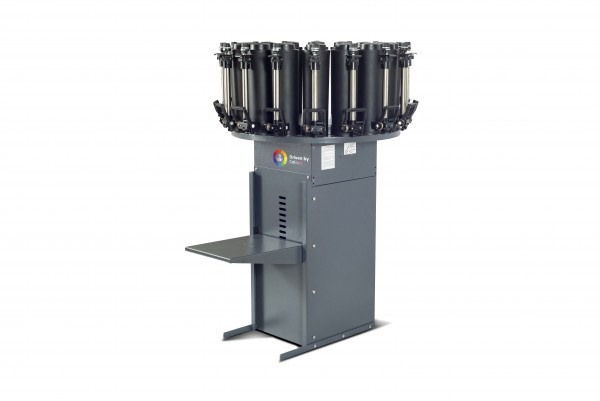

TM – Manual Tinting Dispenser
The TM series manual dispenser is a reliable & accurate machine in comparison to its peers.The Robust & sturdy design of the machine is best suited for rough handling and regular use at retail shops.
TM Manual Dispenser comes with different configurations and is available with 12, 16 & 24 canisters. You can choose different units of measurement for the Scale configuration. The machine can be used with Universal, Low or Zero VOC or solvent borne colorant system.
Available with both Floor stand or Countertop versions.
Available in different scale configurations.
New design of Gauge with Fractional dispensing.
Suitable from small to medium size paint stores.
Additional information
TYPE |
Countertop / Floor stand versions |
---|---|
TECHNOLOGY |
Piston Pump |
CANISTER CAPACITY |
2.3 Ltr |
CANISTER MATERIAL |
Nylon 66 solvent resistant canisters |
COMPATIBILITY |
Water / Universal / Solvent Based Colorants |
NUMBER OF CANISTERS |
Available with 12 / 16 / 24 canisters turntables |
PUMP SIZE |
Piston pump (SS) 2 fl. oz (59.14 ml) |
ACCURACY |
Minimum Dispensing – 0.10 ml |
TIMER |
Electrical Pre-programmed Timer |
CAN HANDLING |
Manually adjustable can Shelf |
SUCK BACK |
Available |
DIMENSIONS |
Dimensions (12 C, countertop) – W 711 X D 711 X H 584 mm |
NET WEIGHT |
12 C (41 kg), 16 C (48Kg), 24 C (65 Kg) |
POWER SUPPLY |
220V / 50Hz & 110V / 60Hz |
GYRO 600
COMPACT & ROBUST MIXING MACHINE

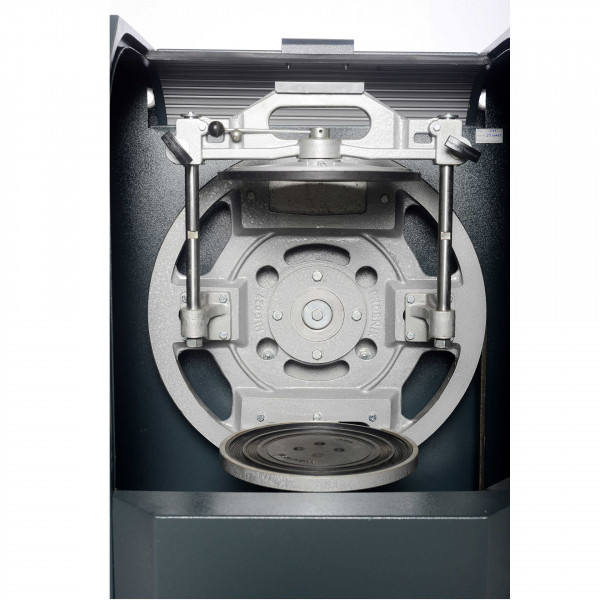

The Gyro 600 is the latest addition to EZ Tint product portfolio. It is a simple design, user friendly, easy to operate and maintain. The simple manual clamping system requires very little effort to clamp paint cans and safe to operate. It comes with a slotted rubber bottom plate for easy can positioning and provides firm support to the containers. Gyro 600 is a revolutionary mixer, which is ideal for all your mixing requirements. Performs gyroscopic action, which enables in effective mixing, uniform blending and making homogeneous mixer. Gyro 600 mixer is specifically designed for point-of sale color mixing applications as well as for semi - industrial applications.
Features :
Unbeatable robustness and durability.
Simplicity in the design and in the electronics.
Less number of components.
Low maintenance require.
Limit switch for safety.
Wide sliding door design for easy effortless can handling.
Reinforced sliding door for easy access and improved durability.
Door safety Lock-unit will not operate when door is open.
Door can't be open while the unit is running.
Emergency Stop - Cuts power to the motor immediately.
Specification :
Maximum Can height : 70 - 400 mm
Clamping clearance : 415 mm
Maximum Can diameter : 60 - 275 mm
Maximum Can weight : 40 kg
Can clamping : Manual
Timer : Mechanical (up to 5 min.)
Main motor : 1HP, 1425 rpm, (230V) or 1725 rpm
(115V)
Machine dimensions (WxDxH) : 840 x 680 x 1075 mm
Net weight : 145 kg
NIX Mini 2 - EZ Tint - Official Reseller
Made in Canada and engineered with life in mind, the Nix Mini 2 is ideal for those who appreciate the fusion of technology with design. Easily match and identify any color with a simple scan, and pair it with either the free Nix Paints app access over 200,000 paint colors and harmonies, or use the free Nix Digital app to retrieve digital color values.
Demo Video: Click Link Below
https://lnkd.in/gjQH3KsG
